Diaphragm Pump 41 Series

  • Diaphragm Pump 41B Series
  • Diaphragm Pump 41B Series
  • Diaphragm Pump 41B Series
Diaphragm Pump 41B SeriesDiaphragm Pump 41B SeriesDiaphragm Pump 41B Series

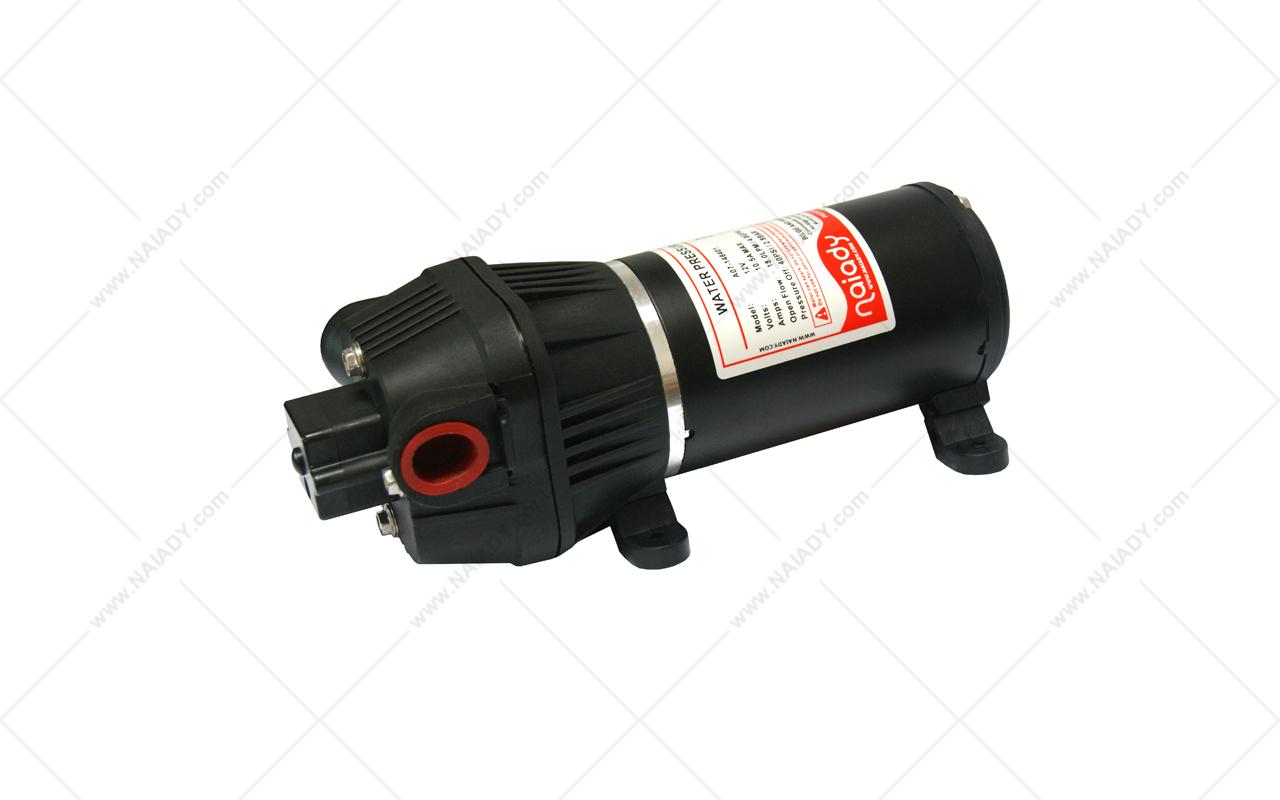

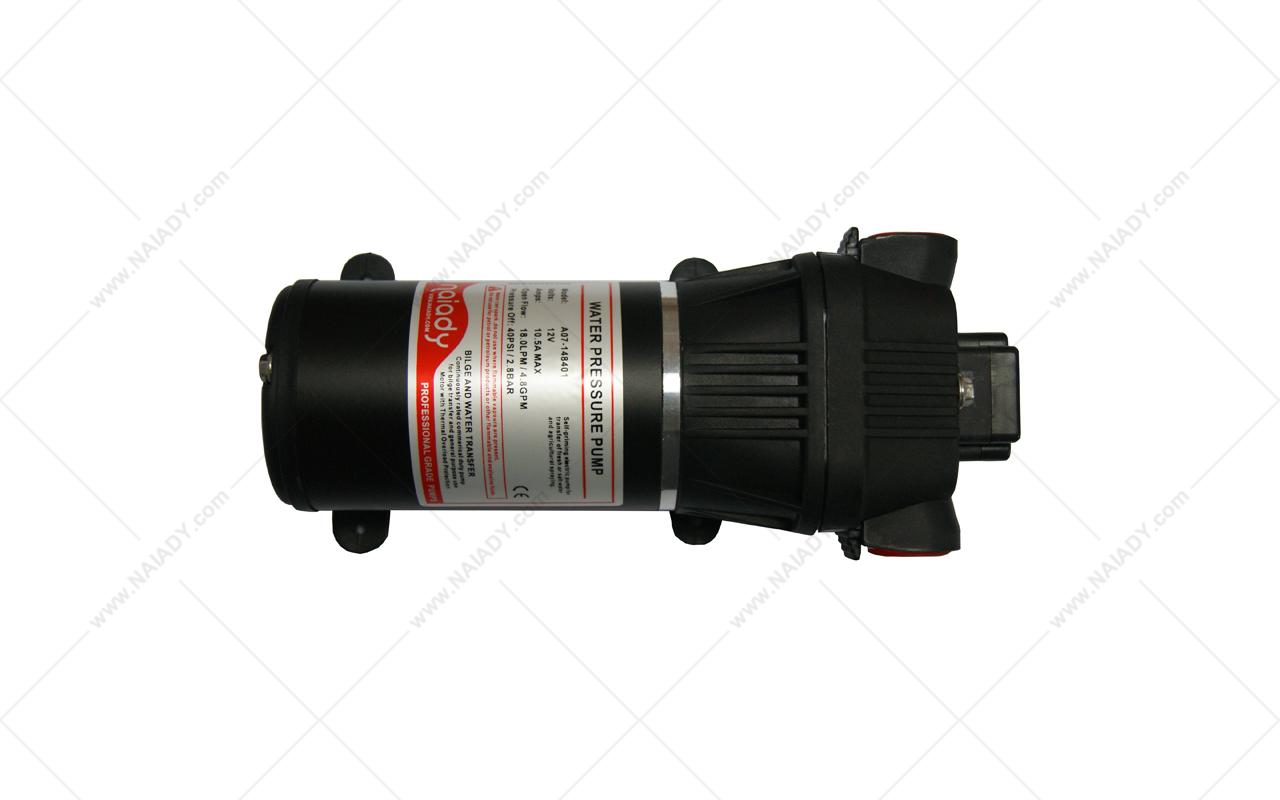

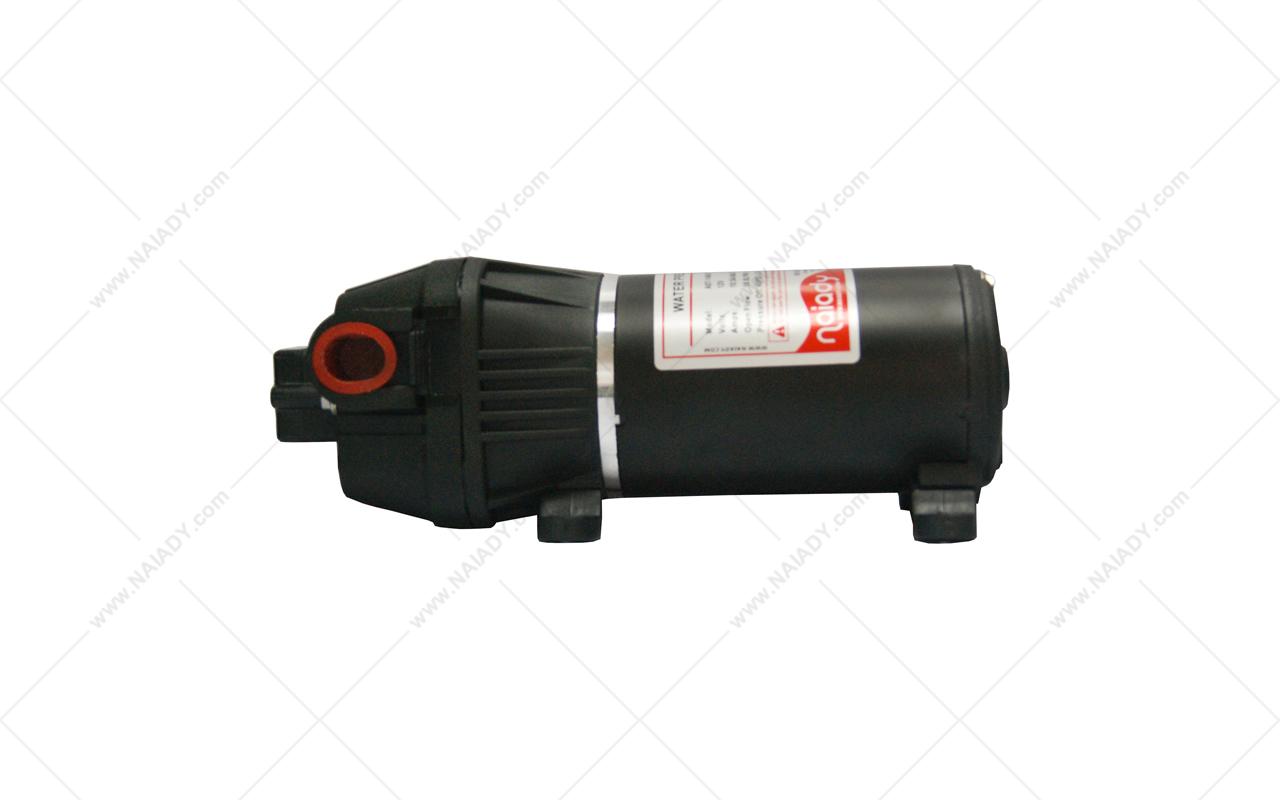

Diaphragm Pump 41B Series

  • Voltage: 12V/24
  • Pressure Off: 40 PSI
  • Ports: Quick Attach
  • Open Flow: 18LPM
  • Product description: 12V/24V DC pressure diaphragm pump has self-priming performance. Pressure and flow can be customized according to customer requirements.
  • Click to buy

Features & Benefits

· PA66 composite pump head and PPS pump plate.

· Self-priming

· Quiet operation

· "Santoprene" diaphragm

· Pressure and flow can be customized according to customer requirements.

· Easy connect fittings


Typical Applications

· Marine · RV · Industrial · Scientific Research · Agricultural


STANDARD PUMP CONFIGURATIONS

Model
Open Flow
Volts
Max Draw
Switch
Pressure Off (psi/bar)
Ports
N.W/G.W
A07-148401
18LPM/4.8GPM
12V
10.5A
Demand
40 / 2.8
Quick Attach
2.5/2.8 kg
A07-248401
18LPM/4.8GPM
24V
6.0A
Demand
40 / 2.8
Quick Attach
2.5/2.8 kg

PERFORMANCE CURVE

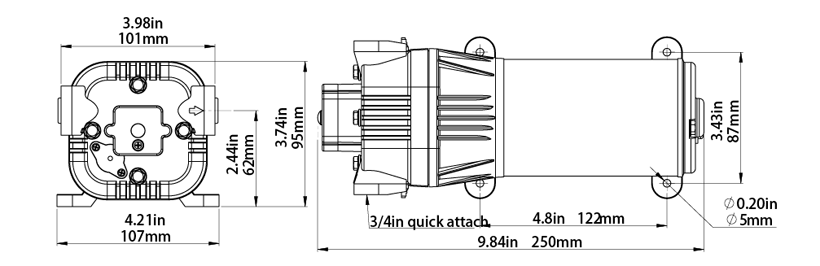

DIMENSIONS
