Features & Benefits
· PTFE composite pump head and gears
· Self-priming
· Thermally Protected Motor
· Stainless Steel Shaft
· Easy to cleaning and maintenance
· Super wear resistance gear
Typical Applications
· Marine · RV · Industrial · Scientific Research
STANDARD PUMP CONFIGURATIONS
|
Model
|
Open Flow
|
Volts
|
Max Draw
|
Fuse Amps
|
Stall Pressure (psi/bar)
|
Ports
|
N.W/G.W
|
|
A07-132201
|
12LPM/3.2GPM
|
12V
|
8.0A
|
10A
|
55 / 4.0
|
3/8" BSP / 1/2" barb
|
1.9/2.1 kg
|
|
A07-232201
|
12LPM/3.2GPM
|
24V
|
5.0A
|
10A
|
55 / 4.0
|
3/8" BSP/ 1/2" barb
|
1.9/2.1 kg
|

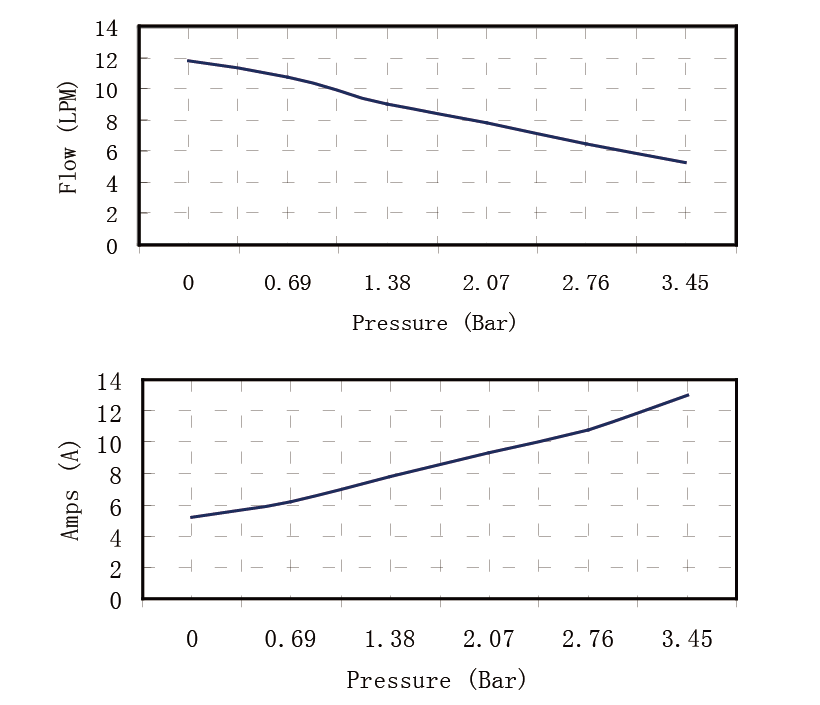

PERFORMANCE CURVE

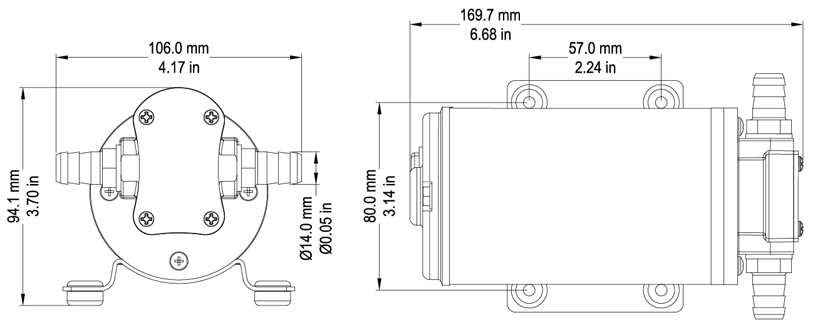

DIMENSIONS
